1000KV Brushless Motor Kit
It uses an electronic controller to switch DC currents to the motor windings producing magnetic fields that effectively rotate in space and which the permanent magnet rotor follows. The controller adjusts the phase and amplitude of the current pulses that control the speed and torque of the motor.
Brand:
Categories:
share

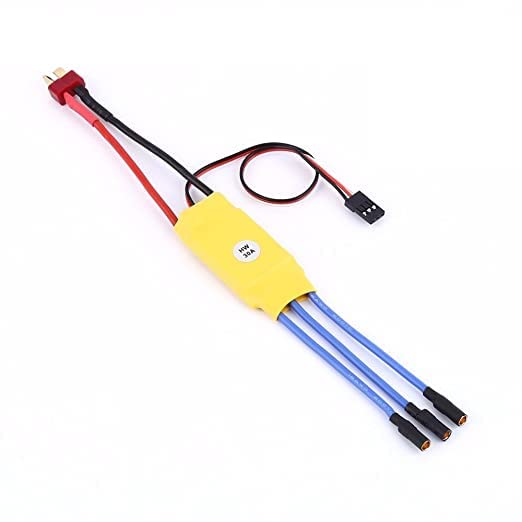

- Brushless Motor Specification: XXD A2212 1000KV brushless pioneer motor KV: 1000 Max. Efficiency: 80% Max. Efficiency current: 4-10A (> 75%) Current capacity: 12A/60 s No Load current @ 10 V: 0.5A Number of cells: 2-3 li-poly Motor size: 27.5*27mm/1.1*1.1in Shaft diameter: 3.17mm/0.1in ESC Specification: Output: 30A continuous, burst 40A up to 10 Secs. Input voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery BEC: 2A/5V (linear mode). Maximum speed: 210,000 rpm for 2-pole BLM, 70,000 rpm for 6-pole BLM, 35,000 rpm for 12-pole BLM. (BLM: brushless motor) Size: 45*24*11mm/1.8*0.9*0.4in Package Included: 1 * A2212 1000KV brushless pioneer motor with mounts 1 * 30A Brushless ESC 1 * pairs of 1045L/R propellers (black)
